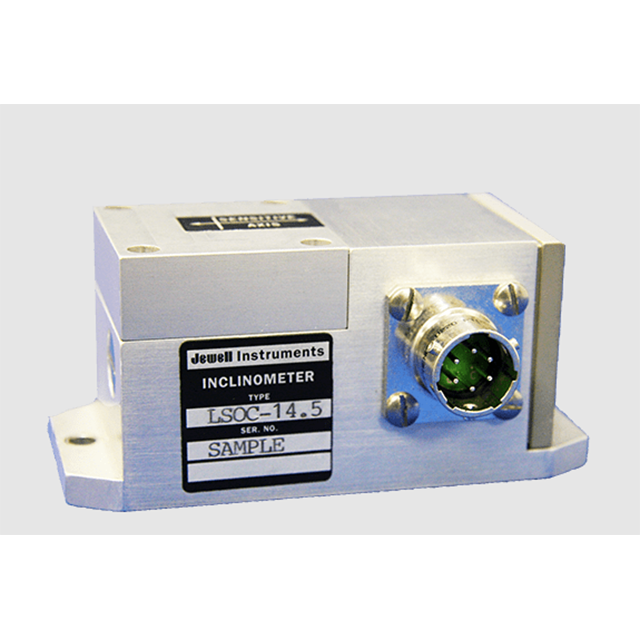

Jewell LSOC/LSOP Single-Axis Analog Inclinometer

Updated:2025-11-09

Brand: Jewell
Model: LSOC/LSOP
Description: The Jewell LSO Series fluid damped, flexure suspension, servo inclinometer is a precision internal grade sensing instruments and it is Jewell’s most robust solution designed to meet the needs of a var
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSOC/LSOP Single-Axis Analog Inclinometer Description：

Datasheet Outline Drawing

The Jewell LSO Series fluid damped, flexure suspension, servo inclinometer is a precision internal grade sensing instruments and it is Jewell’s most robust solution designed to meet the needs of a variety of commercial, industrial, and aerospace applications. LSO Series is a fluid damped design. Units are available with a 6-pin connector, or pin-terminals and in ±5V and 4-20mA outputs.

Specifications：LSO: ±5V Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±45.0	±90.0
Full Range Output (VDC, FRO ±5%)¹	±5	±5	±5	±5	±5	±5
Non Linearity (%FRO max)²	0.05	0.05	0.02	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	286.5	95.5	20.0	10.0	7.071	5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	400	300	100	60	60	60
Bandwidth (-3dB, Hz, nominal)	0.5	2	15	20	20	40
Transverse Axis Misalignment (° maximum)	0.1	0.15	0.25	0.5	1.00	1.00
0° Output (Volts Range)	±0.1	±0.04	±0.02	±0.02	±0.02	±0.02
0° Output Temperature Sensitivity (Volts/°C maximum)	0.005	0.003	0.001	0.0005	0.0004	0.0003
Resolution & Threshold (μ)³	1	1	1	1	1	1

Number of Axes	1
Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, maximum)	15
Output Impedance (Ω, nominal)	100
Noise (Vrms, maximum)	0.002

Housing Material	Anodized Aluminum
Protection Class (per IEC 529)	IP68
Fastener Size³	#8-32 (M4X0.7)
Torque for Steel Fasteners⁴	10 inch-lbs (1.0nM)
Jewell Connector Part #	62101011-000
Surface Flatness³	0.003 (0.0765mm)

LSO-L: 4-20mA Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±90.0
Full Range Output (mA ±1%)¹	4-20	4-20	4-20	4-20	4-20
Non-linearity (%FRO max)²	0.05	0.05	0.10	0.10	0.05
Scale Factor (mA/g, nominal)	458.4	152.6	32.0	16.0	8.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	400	300	100	100	100
Bandwidth (-3dB, Hz, nominal)	0.3	2	15	20	30
Transverse Axis Misalignment (° maximum)	0.15	0.25	0.50	1.00	1.00
0° Output (mA)	12 ±0.6	12 ±0.6	12 ±0.3	12 ±0.3	12 ±0.3
Output at 0° Tilt Temperature Sensitivity (mA/°C maximum)	0.015	0.01	0.0032	0.0032	0.0016
Resolution & Threshold (μ)³	1	1	1	1	1

Input Voltage Range (VDC)	20 to 30 (24 nominal)
Input Current (mA, maximum)	40
Noise (Vrms, maximum)	0.01

Operating Temperature Range	-18°C to +71°C
Storage Temperature Range	-40°C to +71°C
Shock	1500g, 0.5 msec, ? sine
Vibration	20 grms

Housing Material	Anodized Aluminum
Protection Class (per IEC 529)	IP68
Fastener Size³	#8-32 (M4X0.7)
Torque for Steel Fasteners⁴	10 inch-lbs (1.0nM)
Jewell Connector Part #	62101011-000
Surface Flatness³	0.003 (0.0765mm)

Weight	13 oz
Dimensions	3.64 × 1.6 × 1.7 in
Features	? Extremely high resolution and low hysteresis of less than 0.0005% of full range output. ? Extremely robust designed to withstand shocks in excess of 1500g and vibration of 20 grms. ? Responds to changes of slope as small as 0.000006”/ft. ? High accuracy closed-loop force balanced sensor technology. ? Low white noise spectral density of better than 0.15μV/Sq. Root HZ ? RoHS compliant version available
Applications	? Steel Processing ? Continuous Casting ? Electric Arc Furnace ? Idle Control ? Heavy construction ? Paving ? Grading ? Mining ? Tunneling ? Overturn Detection ? Structural Monitoring ? Automated Train Controls ? Rail Leveling and Grinding ? Rail Bed Analysis
