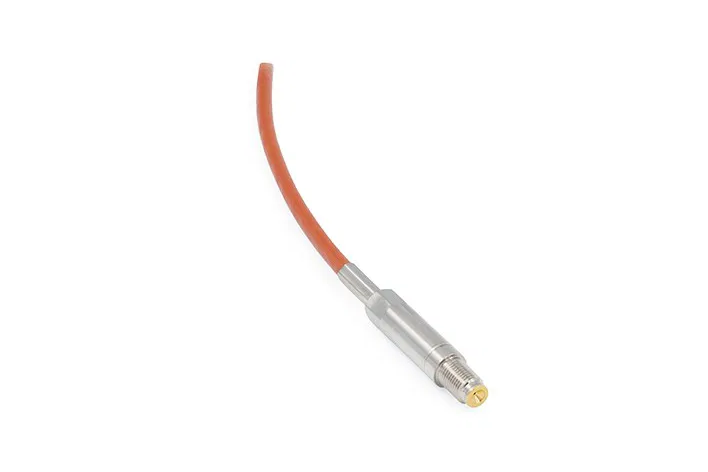

Keller AG Series M5 Pressure Transducers

Updated:2025-08-07

Views:340

  • Brand: Keller AG
  • Model: Series M5
  • Description: The miniature pressure transducer M5 takes its name from the fine M5 thread at the sensor head that makes it possible to take measurements in places which are difficult to access and in narrow pipelin
  • Feedback

  • WeChat

    QQ

    Online Service

Product Details

Keller AG Series M5 Pressure Transducers Description：

Datasheet User's Manual

The miniature pressure transducer M5 takes its name from the fine M5 thread at the sensor head that makes it possible to take measurements in places which are difficult to access and in narrow pipelines. Together with its ability to measure media at temperatures of up to 180 °C in a dynamic range from 0 to 50 kHz, this makes it ideally suited to measurements on engine test benches.

Pressure Ranges：0…3 to 0…30 bar

Accuracy：± 0,3 %FS

Pressure Connection：M5 x 0.5 thread

Dimensions：? 6,2 mm x 40 mm

Temperature Range：-50…180 °C

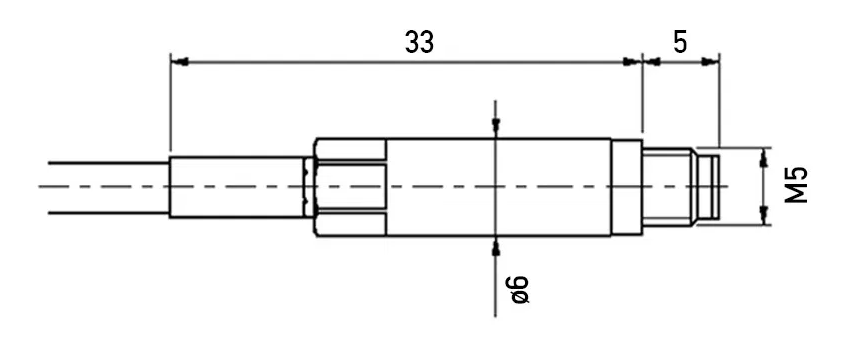

Sketch
