Datasheet User's Manual

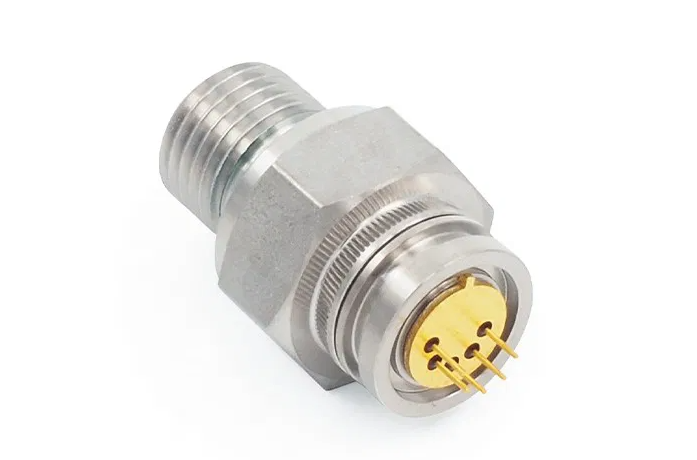

The pressure transducers of the 20 series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact, robust stainless steel housing without internal seals is suitable for various OEM applications. Each pressure transducer is calibrated via pressure and temperature and supplied with a detailed calibration sheet.
Pressure Ranges：0…5 to 0…600 bar
Accuracy：± 0,5 %FS
Pressure Connection：G1/4, 1/4-18NPT
Dimensions：HEX19 x 32mm
Temperature Range：-10…80 °C

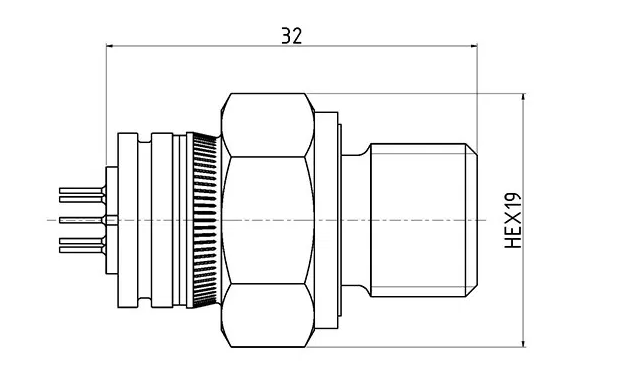

Sketch
