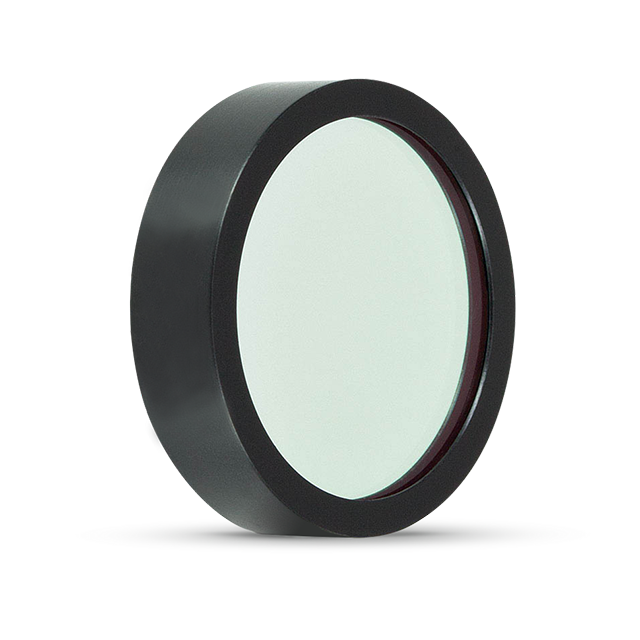

Gentec-EO UG11-UV UV transmitting filter for BEAMAGE camera.
Key features
UV bandpass filter
Particularly useful for applications with wavelengths contained between 250 nm and 370 nm. Other wavelengths are blocked by the filter.
Specifications
| Measurement capabilities | |
| Spectral range | 250 - 370 nm |
| Parallelism | < 3 arcmin |
| Maximum power | 1 W |
| Surface quality | 40-20 Scratch-Dig |
| Surface flatness | < λ/4 |
| Thickness | 3 mm |
| Damage thresholds | |
| Damage thresholds | 30 W/cm2 |
| Physical characteristics | |
| Dimensions | 30.5? X 11.4D mm |
| Weight | 0.04 kg |
| Mounting thread | SM1 |
| Clear aperture | 80% of area |
| Adaptor included | SM1 / C-Mount |
| Dimensional tolerance | +0.0/-0.2 mm |
