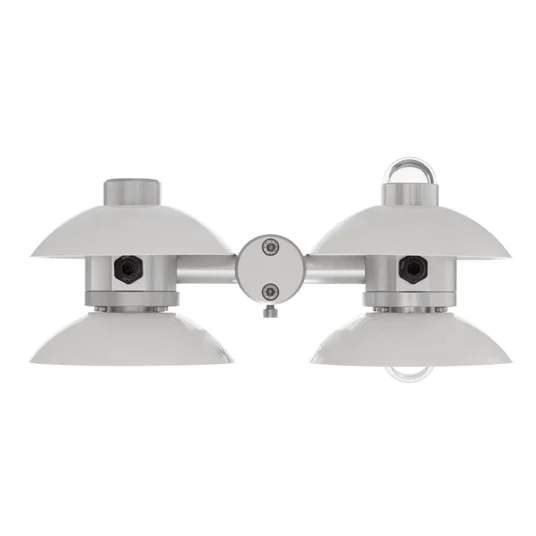

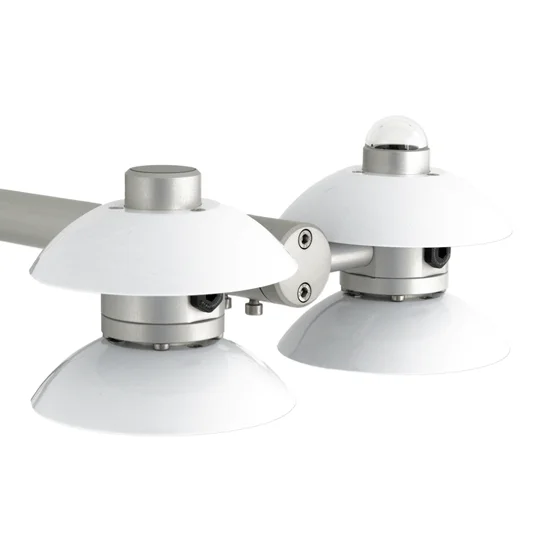

NR01 4-component net radiometer

Updated:2025-03-13

Brand: Hukseflux
Model：NR01
Description: NR01 is a market leading 4-component net radiometer, mostly used in scientific-grade energy balance and surface flux studies. It offers 4 separate measurements of global and reflected solar and downwe
Data download

Feedback
WeChat

QQ

Online Service

Product Details

NR01 4-component net radiometer： User's Manual Datasheet

NR01 Measures the 4 Separate Components of the Surface Radiation Balance

NR01 measures the 4 separate components of the surface radiation balance: downward and upward solar and longwave radiation. The solar radiation sensors are called pyranometers and the longwave sensors are called pyrgeometers. From these 4 separate components the net radiation is derived. For calculation of sky- and surface temperatures, it is necessary to compensate for irradiated heat by the pyrgeometers themselves (Stefan-Boltzmann law). A Pt100 temperature sensor is included in NR01’s body for that purpose. Sunshine duration may be estimated according to the WMO approved pyranometric method.

NR01 Operation

Using NR01 net radiometer is easy. It can be connected directly to commonly used data logging systems. The irradiance levels in W/m2 are calculated by dividing the NR01 outputs, small voltages, by the sensitivities. The longwave irradiance should be corrected using the instrument body temperature. The sensitivities of all sensors are provided with NR01 on its product certificate.

NR01 Benefits

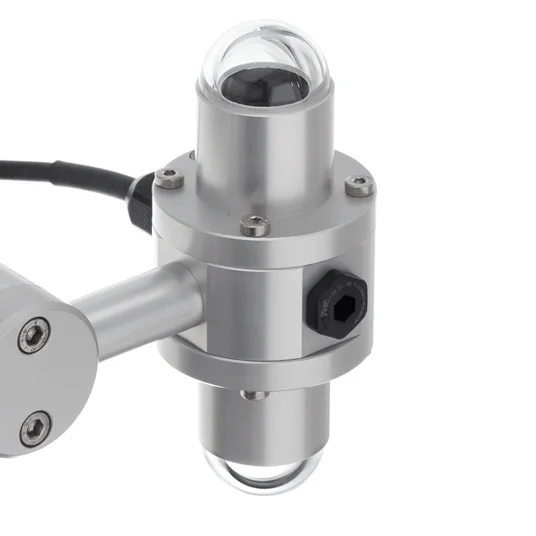

In order to prevent condensation of water on the pyrgeometer windows, NR01 has internal heating close to the pyrgeometers. This keeps the instrument above dew point. As water blocks longwave radiation, heating will improve the reliability of longwave radiation measurement, in particular at night, when the risk of condensation is highest. Solar offsets in the longwave radiation measurement are very low. NR01 net radiometer has a modular design with 2 pairs of identical sensors: it is possible to take the instrument apart and easily replace individual sensors, and recalibrate them in using the same procedure. Features like these have made NR01 net radiometers popular in energy balance and surface flux studies. In addition, NR01 is practical to mount; it is much lighter than competing models and a 2-axis levelling assembly is included. The levelling assembly fits a 1 inch NPS tube (the tube’s recommended outer diameter equals 33.4 x 10?3 m). With the NR01 shim, included in NR01’s delivery, a ? inch NPS tube may also be used.

Suggested Use

energy balance studies

surface flux measurements

climatological networks

Areas of Application

Building physics / insulation, thermal comfort and energy budget measurement

Meteorology / surface energy flux measurement

NR01 4-component net radiometer Specifications：

Measurands	Downward longwave radiation, global solar radiation, net radiation, reflected solar radiation, upward longwave radiation
Optional measurands	Albedo or solar reflectance, sky temperature, solar duration, surface temperature
Included sensors	2 x identical ISO 9060 second class pyranometers 2 x identical pyrgeometer with 150° field of view angle
Spectral range solar	285 to 3000 x 10?? m
Calibration traceability solar	to WRR
Calibration uncertainty solar	< 1.8 %
Spectral range longwave	4.5 to 40 x 10?? m
Calibration traceability longwave	to WISG
Calibration uncertainty longwave	< 7 %
Temperature sensor	Pt100
Heater on pyrgeometer	1.5 W at 12 VDC
Rated operating temperature range	-40 to 80°C
Required readout	4 x DC voltage,
Levelling	2-axis levelling assembly (included)
Mounting	? inch NPS tube (not included)
Standard cable length	2 x 5 m (see options)
* Required measurand	instrument body temperature
Options	? Longer cable, in multiples of 5 m, cable lengths above 20 m in multiples of 10 m ? 10 k? thermistor instead of Pt100 temperature sensor
