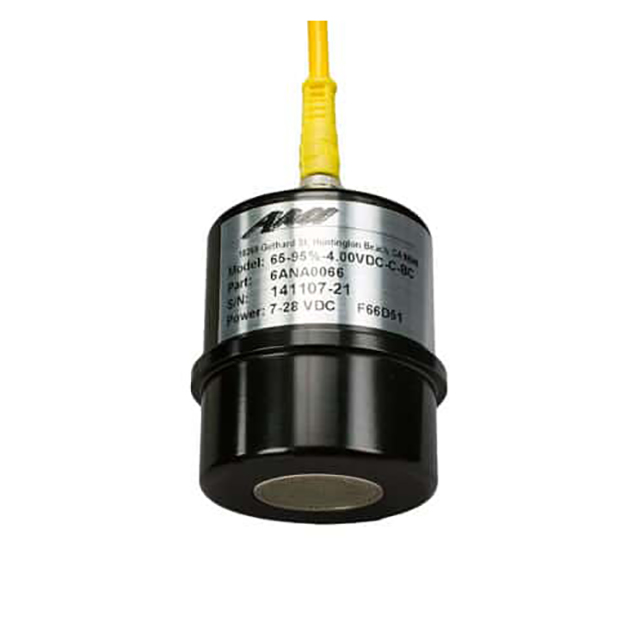

MODEL 65 Percent Oxygen Analyzer

Updated:2025-03-13

Brand: AMI
Model: MODEL 65
Description: The MODEL 65 is is a Percent Oxygen Analyzer for non-flammable gases in a general purpose environment. The unit functions as a standalone sensor and utilizes zirconium oxide sensor technology to deliv
Data download

Feedback
WeChat

QQ

Online Service

Product Details

MODEL 65 Percent Oxygen Analyzer Description：

Operator Manual Data Sheet AMI Overview

Features & Benefits

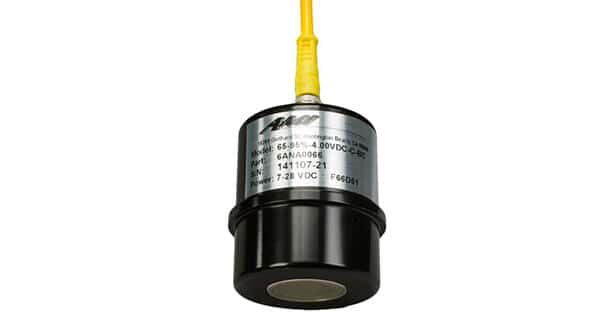

MODEL 65 PERCENT OXYGEN PROBE

The MODEL 65 Percent Oxygen Probe is designed for measuring percent oxygen levels exclusively in NON-FLAMMABLE gases. It will provide a very accurate, stable, long life, linear analog output signal over a preconfigured range of 0-25%, 0-50% or 0-95% of oxygen. The MODEL 65 is simple to mount indoors or outdoors and extremely accurate and stable over a wide temperature range, as well as being immune to changes in barometric pressure.

INCREDIBLE VALUE

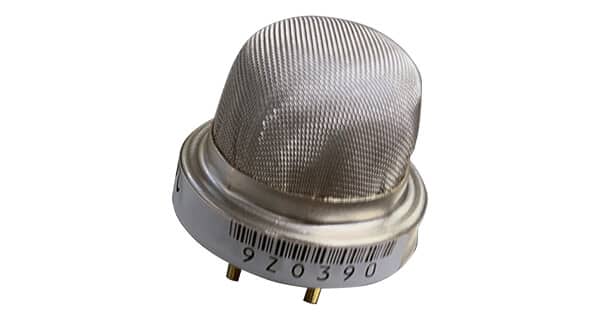

The unit contains a unique zirconium oxide oxygen sensor that gives the probe up to a 10-YEAR LIFE expectancy, making it virtually maintenance-free. It is designed for easy integration into an operator’s system and functions as a standalone oxygen sensor, making it a perfect fit when more costly alarms and controls are not required.

IDEAL OEM SOLUTION

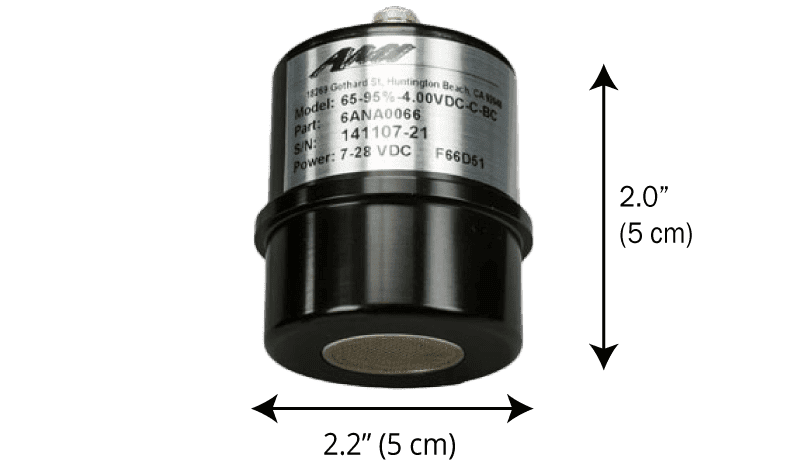

The MODEL 65 is a perfect fit for OEM applications, requiring measurement of percent oxygen levels in inert gases, such as gas blanketing systems, nitrogen or oxygen generators, refrigeration units and many others. At only 2.0” long x 2.2” in diameter (51mm x 56mm), this dependable, rugged, compact probe can be mounted virtually anywhere.

Technical Specifications

Physical & Electrical Specifications
WEIGHT	INSTALLATION	GAS CONNECTION OPTIONS

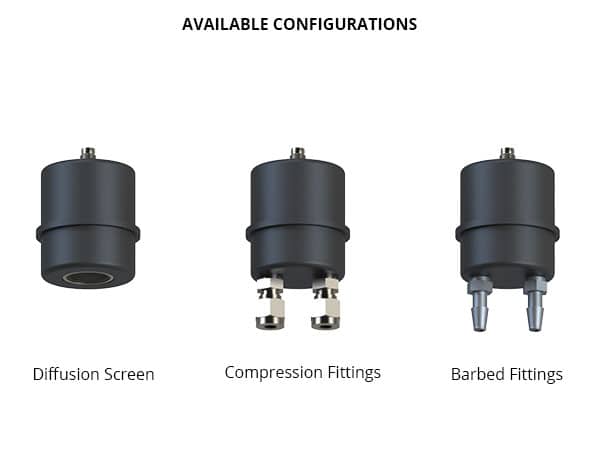

< 1 lbs (0.5 kg)	Integrated as a Standalone Oxygen Sensor	Diffusion screen, 1?4” ID tubing for Barbed Fittngs, or 1?4” compression fittngs
POWER
12 – 24 VDC, 500 mA max

Note: 2-year Warranty for Parts & Labor for any defects in materials or workmanship. 6-month Warranty for oxygen sensors.

Operational Specifications
MEASUREMENT RANGES (SPECIFIED AT TIME OF PURCHASE)	ANALOG OUTPUT (SPECIFIED AT TIME OF PURCHASE)	AMBIENT OPERATIONAL TEMPERATURE	RECOMMENDED FLOW RATE
0 – 25.0% 0 – 50.0%	0 – 2.5 VDC or 4 – 20 mA	-4°F to 122°F (-20°C to 50°C)	0.1 to 5.0 SCFH (0.05 – 2.3 Lpm)
0 – 95.0%	0 – 4.0 VDC or 4 – 20 mA	-4°F to 122°F (-20°C to 50°C)	0.1 to 5.0 SCFH (0.05 – 2.3 Lpm)

Sensor & Analyzer Performance Specifications
ZIRCONIUM OXIDE SENSOR	REPEATABILITY	OPERATIONAL CONDITIONS
Up to a 10-year life	±1% of range or ±0.2% of oxygen, whichever is greater	Pollution degree 2, Installation category II
