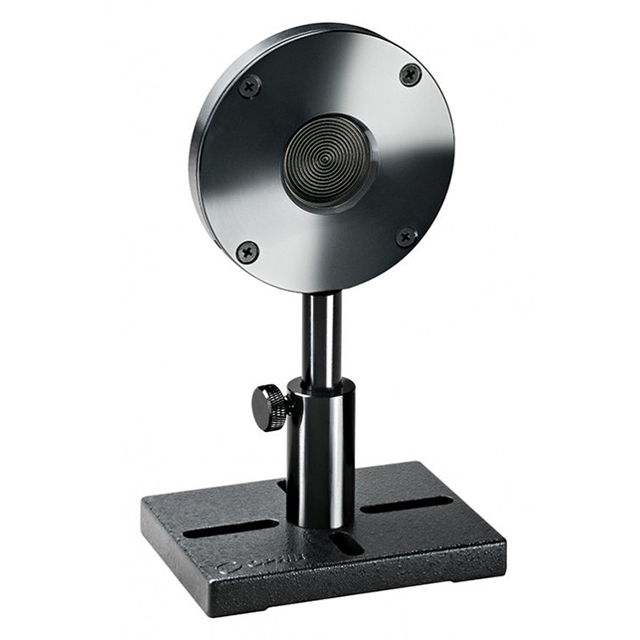

The L30A-EX-10MM is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure energy from 20mJ to 30J. Its EX absorber has a damage threshold of 0.5J/cm2 and covers the spectral range from 0.15 - 0.7μm and 10.6μm. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface.

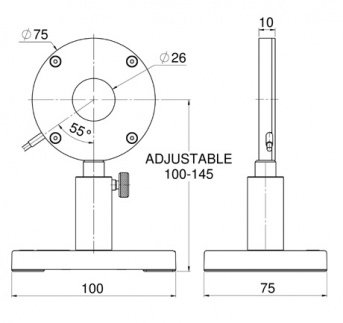

L30A-EX-10MM Drawing
| Absorber Type | EX |
| Aperture | ?26mm |
| Spectral Range | 0.15 - 0.7μm, 10.6μm |
| Power Range | 80mW-30W |
| Energy Range | 20mJ-30J |
| Backscattered Power | N.A. |
| Dimensions | ?75 W x 10 D (mm) |
| Max Pulse Energy | 30J |
| Max Average Power Density | 1.5kW/cm2 |
| Response Time | 1.5 s |
| Max Energy Density (for <100ns) | 0.5J/cm2 |
| Max Energy Density (for 2ms) | 12J/cm2 |
| Max Average Power | 30W |
| BeamTrack Functions | N.A. |
