IS1.5-VIS-FPD-800 7Z02491 Precision Photodiode

Updated:2025-03-13

Brand：Ophir
Model：IS1.5-VIS-FPD-800
Description: The IS1.5-VIS-FPD-800 provides multiple measurement capabilities in a single integrating sphere device: a) a precision photodiode for calibrated average power measurement, b) a fast photodiode for pul
Data download

Feedback
WeChat

QQ

Online Service

Product Details

IS1.5-VIS-FPD-800 7Z02491 Precision Photodiode Description：

The IS1.5-VIS-FPD-800 provides multiple measurement capabilities in a single integrating sphere device: a) a precision photodiode for calibrated average power measurement, b) a fast photodiode for pulse shape characterization on an oscilloscope and c) an SMA fiber optic adapter for easy connection to a spectrometer. The IS1.5-VIS-FPD-800 has a small internal diameter of 1.5 inch (38mm), to minimize the pulse stretching effect inherent to integrating spheres, giving it a time constant of 0.7ns. Together with its fast silicon photodiode, the IS1.5-VIS-FPD-800 provides a pulse rise time of 0.8ns and a fall time of 2.8ns.

IS1.5-VIS-FPD-800 7Z02491 Precision Photodiode Drawing：

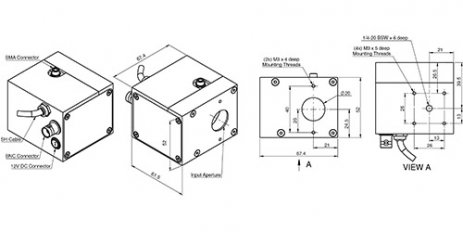

IS1.5-VIS-FPD-800 Drawing

IS1.5-VIS-FPD-800 7Z02491 Precision Photodiode Specifications：

Detector Type	Si:calib & Si:fast
Spectral Range	400-1100nm
Power Range	400nW-4W
Input Port Aperture	?20mm
Maximum Beam Divergence	±60 deg
Fiber Optic Port	SMA connector, maximum NA 0.44
Dimensions	67 L x 52 W x 61 D (mm)
Detector 1	Si photodiode, calibrated power measurement
Spectral Range (det. 1)	400–1100nm
Power Range (det. 1)	400nW–4W
Output (det. 1)	Smart Head, D15
Detector 2	Fast Si photodiode, temporal pulse shape detection
Spectral Range (det. 2)	400–1100nm
Rise Time (det. 2)	0.8 nsec
Fall Time (det. 2)	2.8 nsec
CW Responsivity @ 940nm	55 typ. μA/W
Noise Current	18 typ. fA/√Hz
Output (det. 2)	Analog current, BNC
