Gentec-EO HP60A-15KW-GD-IMP-D0 High Power Detector Description：

Datasheet(CN) Datasheet(EN) HP User's Manual PC-Gentec-EO User's Manual

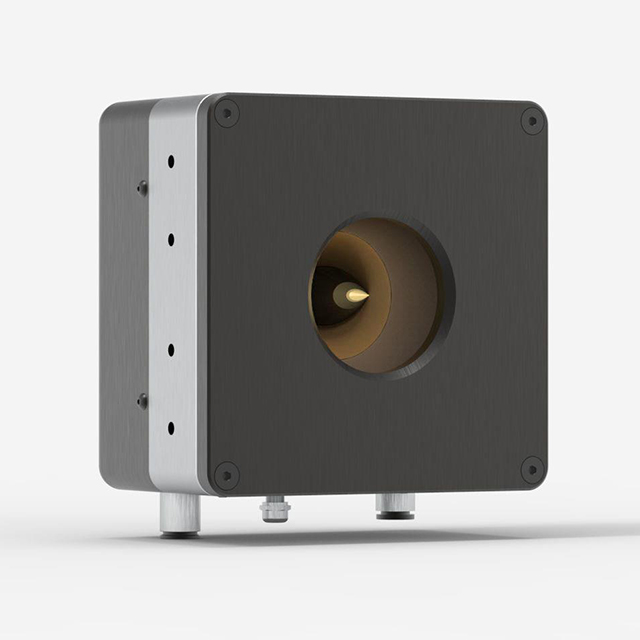

Gentec-EO HP60A-15KW-GD-IMP-D0 High power detector for laser power measurement up to 15 000 W.

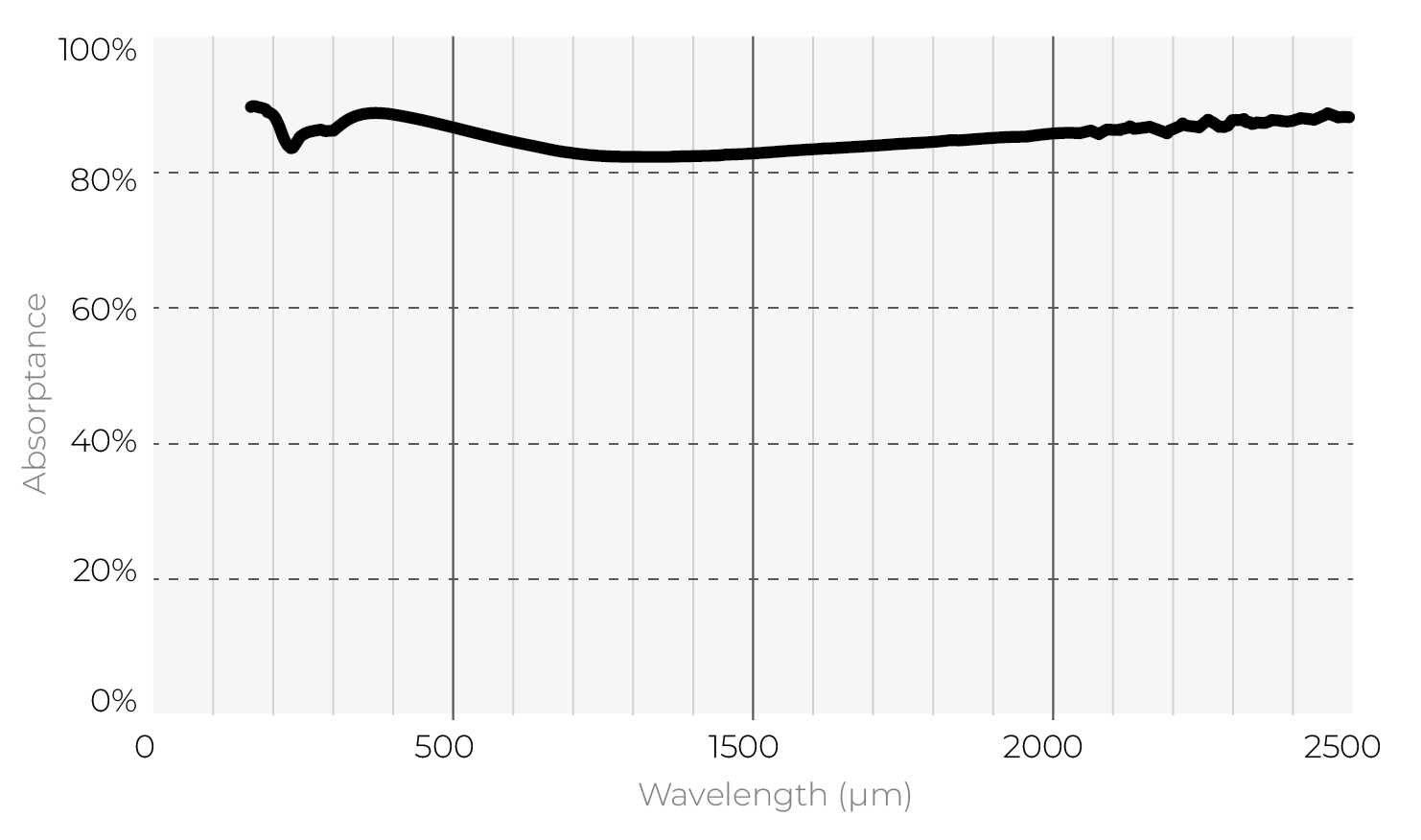

Gold cone absorber: Measure high-power lasers with low back reflections

The most remarkable feature of the GD absorber is that it has the highest damage thresholds for the average power density of the HP series, making it an ideal choice for small, high-power beams. It also features lower back reflections than our standard H absorber.

Safer work environment when working with very high-power lasers

Kilowatt-level power measurement

Highest average power density damage threshold

Low risk of damaging the equipment with your laser

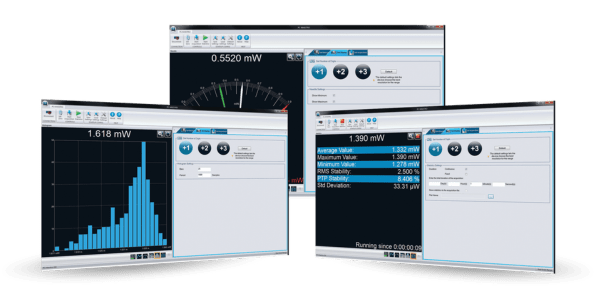

Use it with our included PC-Gentec-EO software

Read your measurements directly on your PC thanks to our free proprietary software PC-Gentec-EO. The software supports the following product series: P-LINK, HP, INTEGRA, U-LINK, and MAESTRO.

Practical displays: real-time, scope, needle, averaging, histogram, and statistics

Useful features such as data logging and correction factors

Many statistics available: current value, average value, maximum value, minimum value, RMS stability, PTP stability, repetition rate, average power, and STD deviation

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Key Features

High Power Handling

Handles up to 30 kW of continuous power with our standard models. Custom models are available for higher powers (See SUPER HP).

Stable Reading

Less sensitive to variations in water cooling temperature than any other high-power water-cooled meter on the market

Large Aperture

Our standard HP models (4KW, 12KW, 15KW and 30KW) have a very large effective aperture of up to 280 mm to accommodate even the largest laser beams. Larger apertures with various shapes are available upon request (See SUPER HP).

Available with YAG and CO2 Calibration

All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of +/- 5%

Direct USB Connection to a PC

Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC.

Specifications
