The FPD-IG-25 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 900 nm to 1700 nm. It has an InGaAs PIN photodiode and is designed to convert optical signals into electrical signals which are then measured with third party measurement instrumentation such as oscilloscopes or spectrum analyzers for measurement. The FPD-IG-25 has a rise time of 25 psec. Its reverse bias voltage is provided by internal batteries.

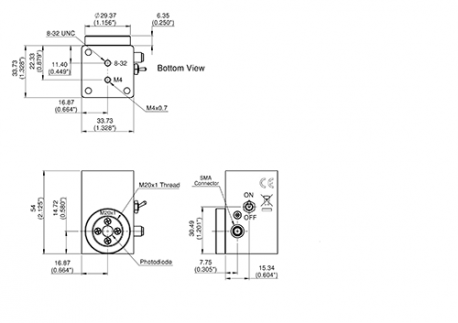

FPD-IG-25 Drawing
| Detector Type | InGaAs |
| Rise Time/Fall Time | <0.025 nsec |
| Spectral Range | 900-1700 nm |
| Active Area Diameter | 0.032 mm |
| Noise Equivalent Power | 20 pW/√Hz |
| Dimensions | 54 L x 34 W x 40 D (mm) |
| Detector Area | 0.00080 mm2 |
| Wavelength of Peak Sensitivity | 1500 nm |
| Responsivity at Peak Wavelength | 0.95 A/W |
| Responsivity (Irradiance) at Peak Wavelength | 0.19 x 10?3 V/(W/cm2) |
| Bias Voltage | 6 VDC |
| Bias Voltage Source | Batteries |
| Bandwidth | >15 GHz |
| Dark Current | <3 nA |
| Maximum Average Power Input | 10 mW |
| Mounting (Tapped Holes) | 8-32 & M4 |
| Output Connector | SMA |
| Accessory Threads | M20x1 |
