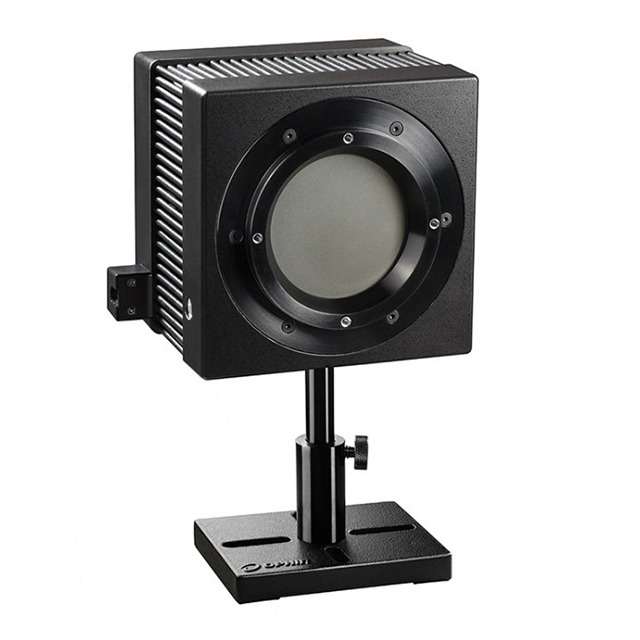

The FL600A-BB-65 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 65mm aperture. It can measure power from 5W to 600W and energy from 600mJ to 600J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

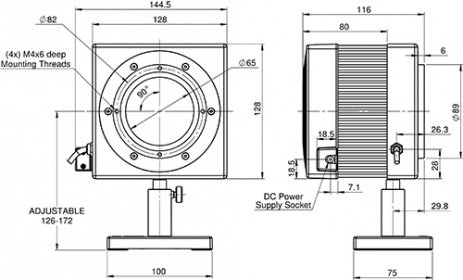

FL600A-BB-65 Drawing
| Absorber Type | Broadband |
| Aperture | ?65mm |
| Spectral Range | 0.19-11μm |
| Power Range | 5W-600W |
| Energy Range | 600mJ-600J |
| Backscattered Power | N.A. |
| Dimensions | 128 L x 128 W x 116 D (mm) |
| Max Pulse Energy | 600J |
| Max Average Power Density | 7kW/cm2 |
| Response Time | 4 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 600W |
| BeamTrack Functions | N.A. |
