CL-01 Chlorophyll Content Meter Description：

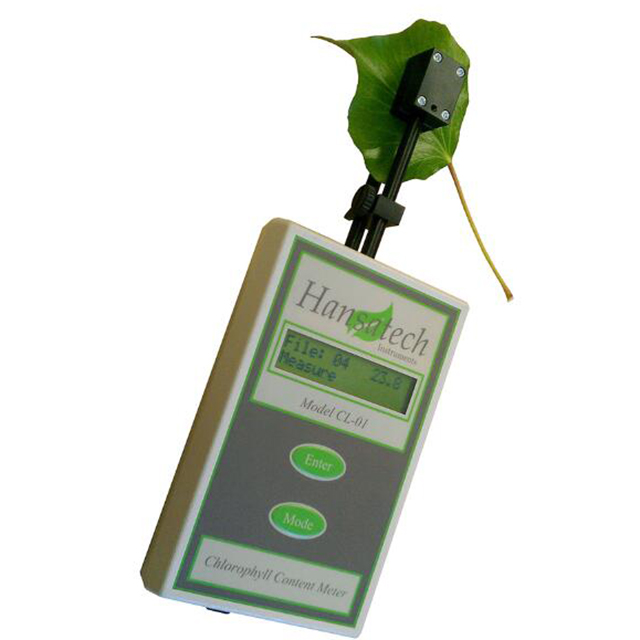

The CL-01 chlorophyll content meter provides a convenient and low-cost method for measuring the relative chlorophyll content of leaf samples. The measurement of chlorophyll content provides indicators of photosynthetic activity related to sample nitrogen concentration. This is particularly important in plant growth plans, where the impact of adding nitrogen to crops can be closely monitored.

On site portable handheld devices use dual wavelength absorbance (620nm and 940nm wavelengths) measurements from leaf samples to determine relative chlorophyll content. The relative chlorophyll content is displayed in the range of 0-2000 units.

CL-01 has a simple 2-key operation. The measurement time is less than half a second and can be saved<=60 times for individual viewing or display as an average value. The width of the leaf sample can reach 127 millimeters. CL-01 is automatically calibrated, and all measurements are temperature compensated to allow for changes in ambient temperature between measurements.

The internal rechargeable lithium polymer battery pack can provide up to 75 hours of operation time, with a charging time of approximately 20 hours. It can be used for 4 hours using the included 12 DC power battery chargers.

Feature

User friendly and low-cost chlorophyll content meter

Portable, lightweight, and sturdy design on site

Dual wavelength absorbance(620nm & 940nm)

Chlorophyll content range: 0-2000 units

Simple 2-key operation

Automatic calibration and temperature compensation

60 Measurement memory capacities

No computer required

CL-01 Chlorophyll Content Meter specifications：
