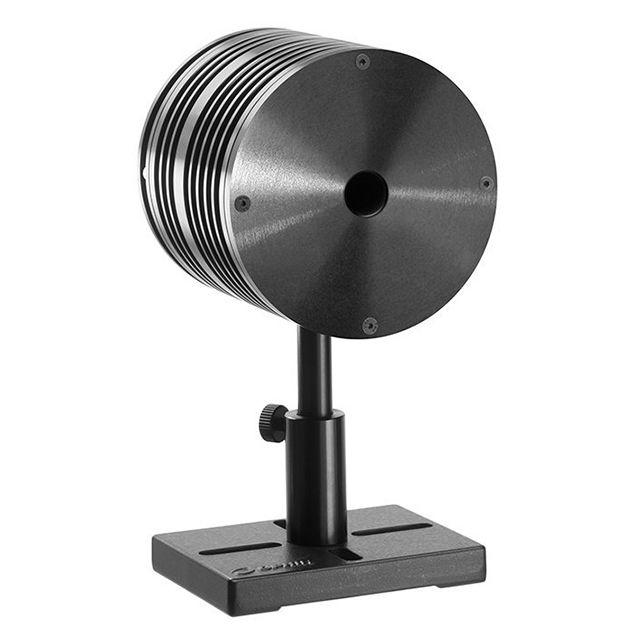

The BT50A-15 is a convection cooled beam trap with a 15mm aperture for up to 50W. It can withstand power densities to 16kW/cm2 at full power and has a spectral range from 0.19 to 20μm. Backscattered power is below 0.05%
BT50A-15 Drawing
| Aperture | ?15mm |
| Spectral Range | 0.19 - 20μm |
| Power Range | Up to 50W |
| Dimensions | ? 100 W x 100 D (mm) |
| Max Pulse Energy | 1000J |
| Max Average Power Density | 16kW/cm2 |
| Max Energy Density (for <100ns) | 4J/cm2 |
| Max Energy Density (for 2ms) | 100J/cm2 |
| Backscatter | 0.05% or less, typ. |
