The 5000W-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 20W to 5000W. Its high damage threshold LP2 coating covers the spectral range 0.35 - 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

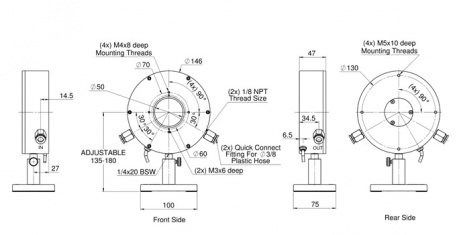

5000W-LP2-50 Drawing
| Absorber Type | LP2 |
| Aperture | ?50mm |
| Spectral Range | 0.35-2.2μm |
| Power Range | 20W-5000W |
| Energy Range | N.A. |
| Backscattered Power | N.A. |
| Dimensions | ?146 W x 47 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 2.5kW/cm2 |
| Response Time | 3 s |
| Max Energy Density (for <100ns) | 0.1J/cm2 |
| Max Energy Density (for 2ms) | 130J/cm2 |
| Max Average Power | 5000W |
| BeamTrack Functions | N.A. |
| Compliance | CE, China RoHS |
