SDI 2422H HERMETIC SPECIALTY +5V ACCELEROMETERS

Updated:2025-03-13

Brand: SDI
Model: 2422H
Description: The Model 2422H Specialty Hermetic MEMS DC Accelerometer from Silicon Designs (SDI) is low-cost, integrated plug-and-play measurement device suitable for a wide array of demanding applications where p
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SDI 2422H HERMETIC SPECIALTY +5V ACCELEROMETERS Description：

Datasheet

The Model 2422H Specialty Hermetic MEMS DC Accelerometer from Silicon Designs (SDI) is low-cost, integrated plug-and-play measurement device suitable for a wide array of demanding applications where power supply options are limited to +5 V DC. The 2422H provides enhanced performance over temperature in zero to medium frequency applications experiencing large or rapid temperature variations or maintaining hot or cold extremes for extended periods of time and environmental conditions require a hermetic package.

The SDI Model 2422H contains three orthogonally mounted, proprietary SDI Model 1522 accelerometer LCC chips, making them even less sensitive to temperature changes and gradients from -55 to +125°C and greatly reducing bias and scale factor temperature shifts for premium performance. Their enhanced, temperature compensated, premium accelerometer LCCs are individually tested, calibrated and verified in a climate chamber. The 2422H comes with an initial calibration report featuring additional information about the linearity, output, phase, and frequency response as tested for each unit.

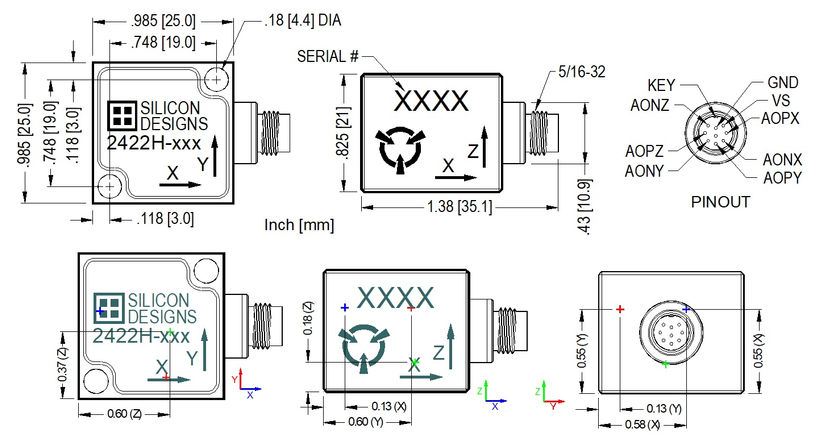

SDI Model 2422H accelerometers are packaged in rugged, hermetically-sealed, titanium cases, and connectors allow for customized cable lengths and easy repositioning. The cases are rated IP67; the connector is rated IP61 and can meet IP67 when sealed with a boot, sleeve, or heat shrink. The case is easily mounted via two screws, adhesive, or by attaching a magnet.

AVAILABLE G-RANGES
± 2 g
± 5 g
± 10 g
± 25 g
± 50 g
± 100 g
± 200 g
± 400 g

Low Noise: 10 μg/rootHz Typical for ±2g Full Scale Versions

-55 to +125°C Operating Temperature Range

Acceleration and Vibration Sensing

Excellent Long-Term Stability

+5 VDC Power for Low Voltage Power Supply Systems

±4V Differential Output or 0.5V to 4.5V Single Ended Output

Responds to frequencies from zero (DC) to 2000+ Hz

Simple Eight (8) Wire Connection

Rugged, Hermetic Titanium Case Capable of IP67

Fully Calibrated and Serialized for Traceability

ZERO TO MEDIUM FREQUENCY APPLICATIONS

g Range	Sensitivity, Differential	Frequency Response (Typ, 3 dB)	Frequency Response (Min, 3 dB)	Frequency Response (Typ, 5%)	Output Noise, Differential (RMS, Typ)	Max. Mechanical Shock (0.1 ms)
G	mV/g	Hz	Hz	Hz	μg/(root Hz)	g (peak)
±2	2000	0 – 525	0 – 300	0 – 250	10	2000
±5	800	0 – 800	0 – 420	0 – 400	15	2000
±10	400	0 – 1100	0 – 660	0 – 700	23	5000
±25	160	0 – 1750	0 – 1050	0 – 1300	38	5000
±50	80	0 – 2100	0 – 1400	0 – 1600	60	5000
±100	40	0 – 3000	0 – 1700	0 – 1700	121	5000
±200	20	0 – 3600	0 – 2100	0 – 1900	243	5000
±400	10	0 – 4200	0 – 2400	0 – 2000	475	5000

OPERATION

SDI Model 2422H Specialty +5 VDC Hermetic MEMS DC Accelerometers provide optimal performance when they are connected to instrumentation in a differential configuration using both the AOP and AON output signals, but they also support single ended operation for complete flexibility.

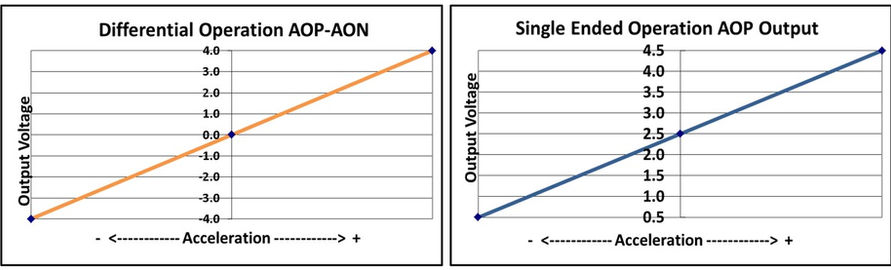

These accelerometers produce differential analog output voltage pairs (AON & AOP) which vary with acceleration. The signal outputs are fully differential about a common mode voltage of approximately 2.5 volts. At zero acceleration, the output differential voltage is nominally 0 volts DC; at ±full scale acceleration, the output is ±4 volts DC, respectively, as shown in the figure (below). The output scale factor is independent from the supply voltage of +8 to +32 volts.

When a differential connection is not possible, SDI recommends connecting the accelerometer to instrumentation in single ended mode by connecting AOP and GND to the instrumentation and leaving AON disconnected. Keep in mind that the signal to noise ratio is reduced by half for a single-ended vs. a differential connection.

PERFORMANCE - ALL VERSIONS

All Models: Unless otherwise specified, Vs=+8 to +32 VDC, TC=25°C, Differential Mode. Span = ±g range = 8000 mV.

Note (1): For 2g thru 50g only; 100g and greater versions are tested and specified from -65 to +65g.

NOTICE: Stresses greater than those listed may cause permanent damage to the device. These are maximum stress ratings only. Functional operation of the device at or above these conditions is not implied.
