The BeamTrack series 10A-BB-16-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 16mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 20mW to 10W and energy from 6mJ to 2J.
The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

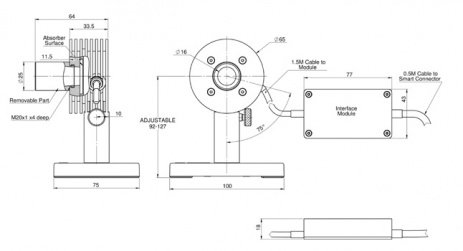

10A-BB-16-PPS Drawing
| Absorber Type | Broadband |
| Aperture | ?16mm |
| Spectral Range | 0.19 - 11μm |
| Power Range | 20mW-10W |
| Energy Range | 6mJ-2J |
| Backscattered Power | N.A. |
| Dimensions | ?65 W x 34 D (mm) |
| Max Pulse Energy | 2J |
| Max Average Power Density | 28kW/cm2 |
| Response Time | 0.8 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 2J/cm2 |
| Max Average Power | 10W |
| BeamTrack Functions | Power/Energy/Position/Size |
